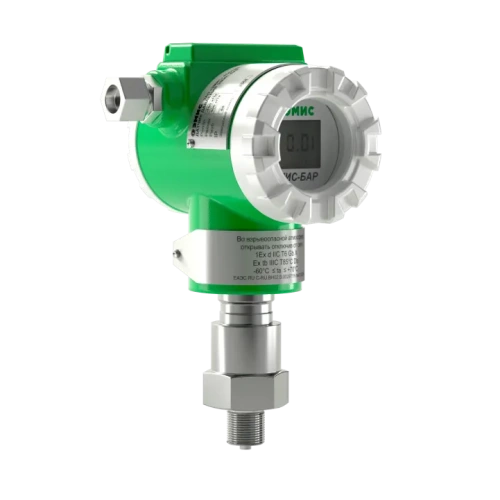

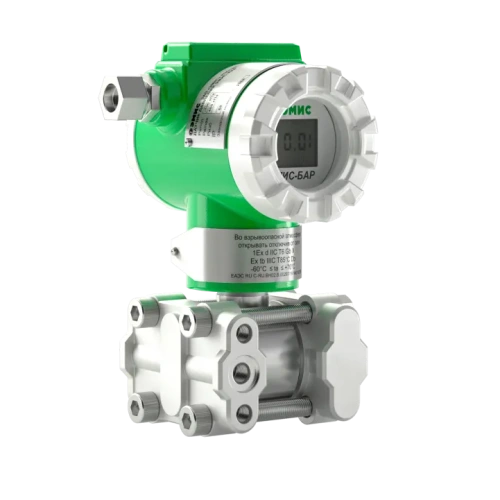

Absolute pressure transmitter EMIS-BAR
We recommend
Characteristics
Measured medium
—
Liquid, Steam, Gas
Measured range, MPa
—
up to 40
Proccess temperature, °C
—
-90...+230 with remote diaphragm seal
Ambient temperature, °С
—
-60...+85 with preservation of explosion protect
Accuracy, %
—
±0.04;±0.065; ±0.1; ±0.2; ±0.5; ±1.0
Absolute pressure transmitter EMIS-BAR
EMIS-BAR Absolute Pressure Transmitters (4–20 mA)
Applications
EMIS-BAR absolute pressure transmitters are designed for integration into automated control, regulation, and monitoring systems across a wide range of industries, including:
- Ferrous & Non-Ferrous Metallurgy
- Oil & Gas (refining, upstream, offshore platforms)
- Power Generation (thermal power plants)
- Chemical & Petrochemical Processing
- Food & Beverage Production
- Mining & Maritime Applications (ships, subsea, hazardous environments)
Key Features & Advantages
- High Accuracy: Measurement precision up to ±0.04%, meeting global industry standards.
- Intrinsic Safety: Button-adjustable calibration (including zeroing) for hazardous areas (ATEX/IECEx) without compromising enclosure integrity.
- Advanced Diagnostics: Extended self-diagnostic functions for predictive maintenance and fault detection.
- Exceptional Durability: Withstands extreme overpressure up to 105 MPa (15,000+ psi).
- Comprehensive Model Range: Configurable options for diverse process requirements.
- EMIS-Integrator Software: Enables seamless configuration, calibration, and real-time monitoring.
Why Choose EMIS-BAR?
- Reliable Performance: Engineered for harsh industrial environments (offshore, mining, high-vibration zones).
- Regulatory Compliance: Certified for use in explosive atmospheres and demanding conditions.
- User-Friendly Operation: Simplified setup via push-button interface and PC software.
For detailed specifications or application support, contact our technical team.
Specifications
|
Measured medium
|
Liquid, Steam, Gas |
|
Measured range, MPa
|
up to 40 |
|
Proccess temperature, °C
|
-90...+230 with remote diaphragm seal |
|
Ambient temperature, °С
|
-60...+85 with preservation of explosion protect |
|
Accuracy, %
|
±0.04;±0.065; ±0.1; ±0.2; ±0.5; ±1.0 |
|
Output signals
|
4-20mA + HART with DD and DTM |
|
Explosion protection type
|
1Ex d IIC T6…T4 Gb X; 1Ex d ia IIC T6…T4 Gb X; 0Ex ia IIB T6…T4 Ga X; 0Ex ia IIC T6…T4 Ga X; PO Ex ia I Ma X; PB Ex d I Mb X; PB Ex d ia I Mb X |
|
Ingress protection
|
IP65, IP66, IP67, IP68 |
|
Calibration interval, years
|
6 |
|
Software
|
Branded software EMIS-Inrtegrator |
|
Stability
|
Less than 0.1% within 10 years |
|
Range adjustment
|
30:1 |
|
Diaphragm material
|
Stainless steel 316L, Hastelloy HC-276, Tantalum, Monel, 316L gols-plated |
|
Proccess connection
|

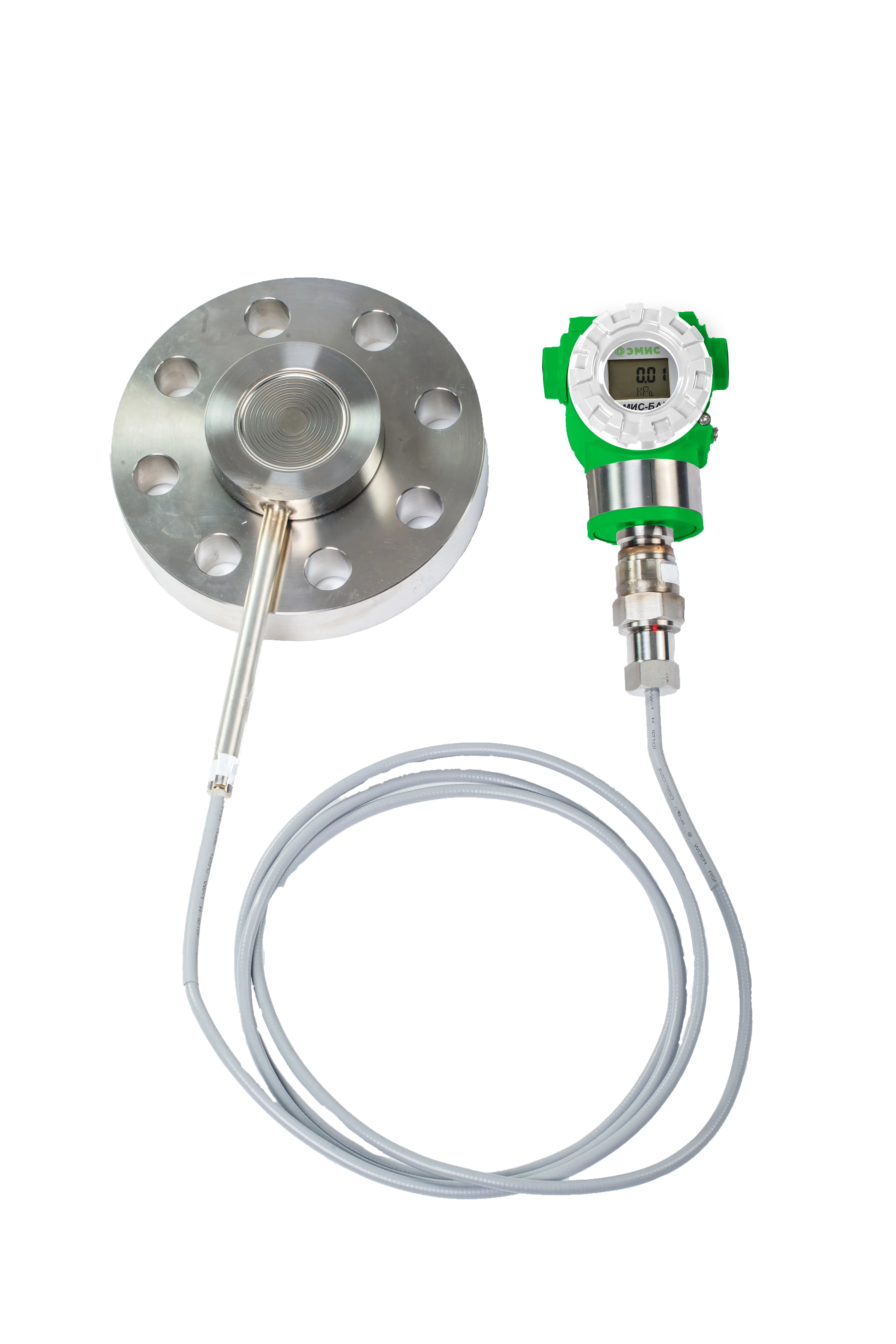

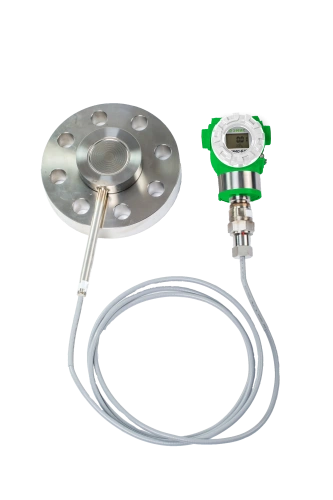

In-line mount, flanged, with Remote Diaphragm Seal, with Remote Extended Diaphragm Seal |
|
Filling liquid
|
Silicon oil, Inert oil |
|
Transmitter material
|
Aluminium, Aluminium with a protective layer, Stainless steel |
