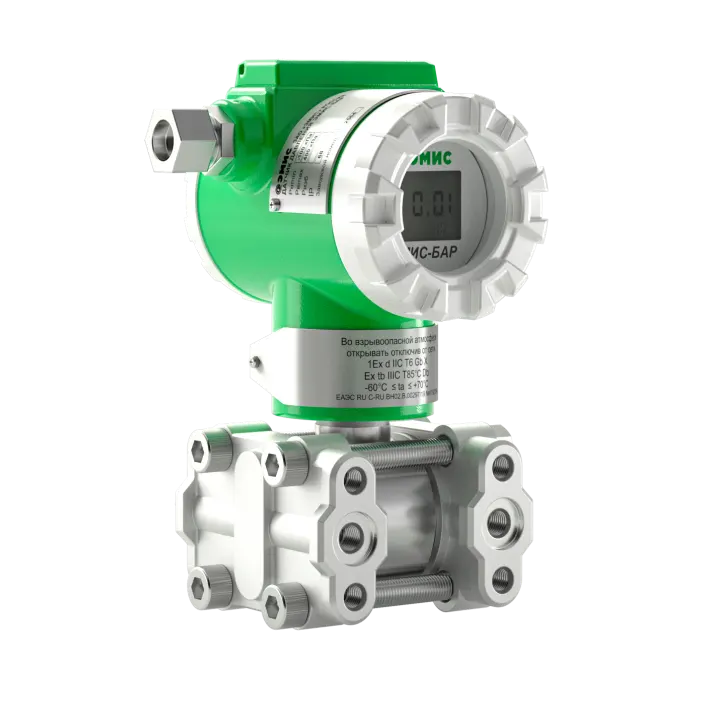

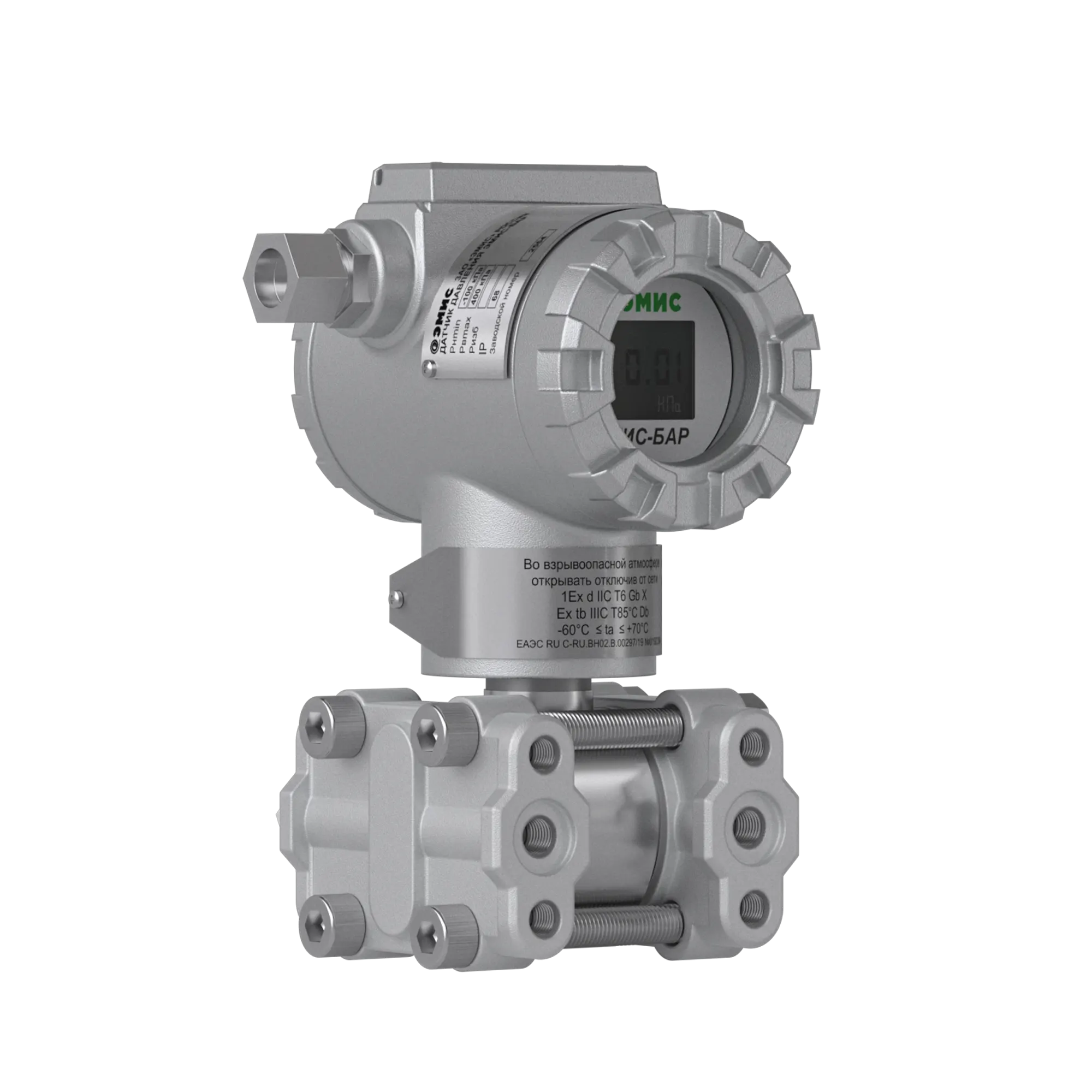

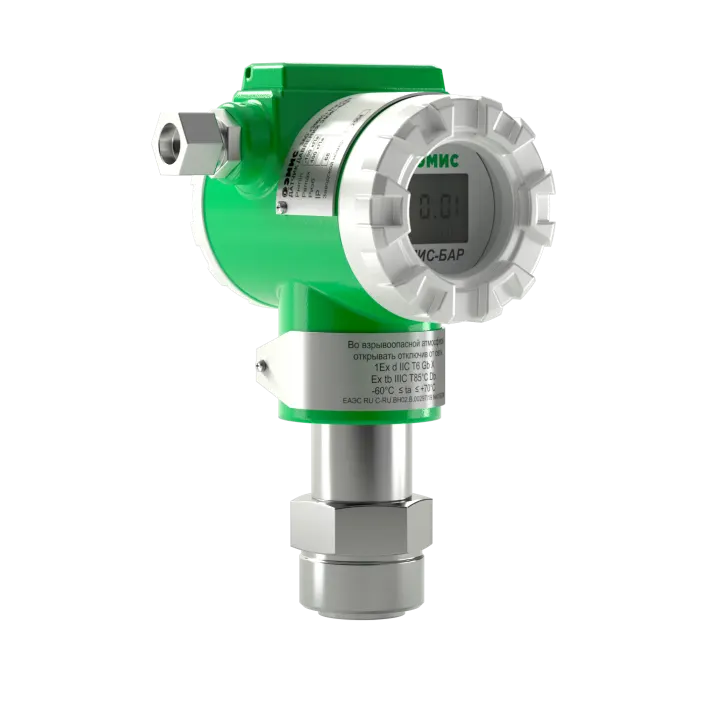

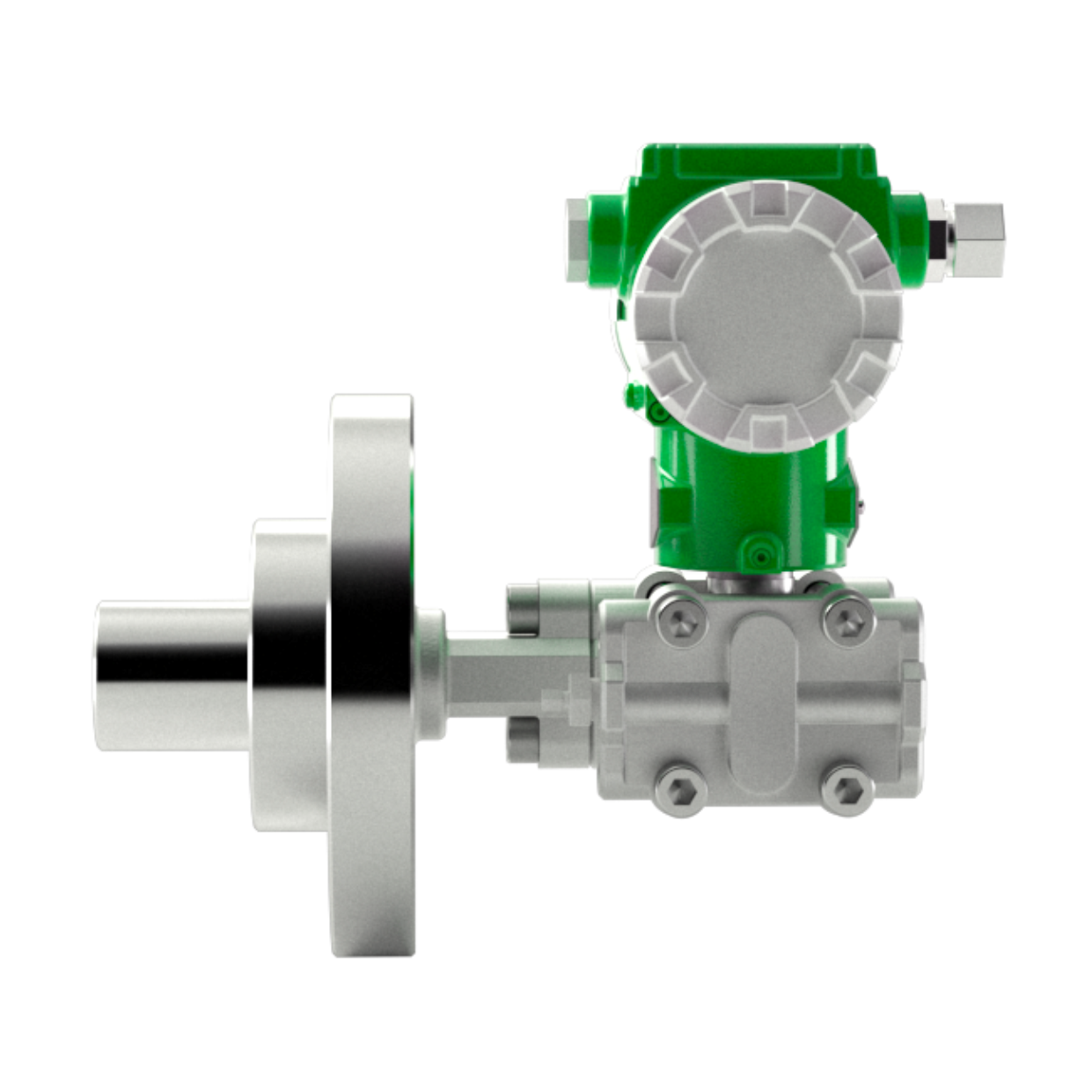

Pressure transmitters EMIS-BAR

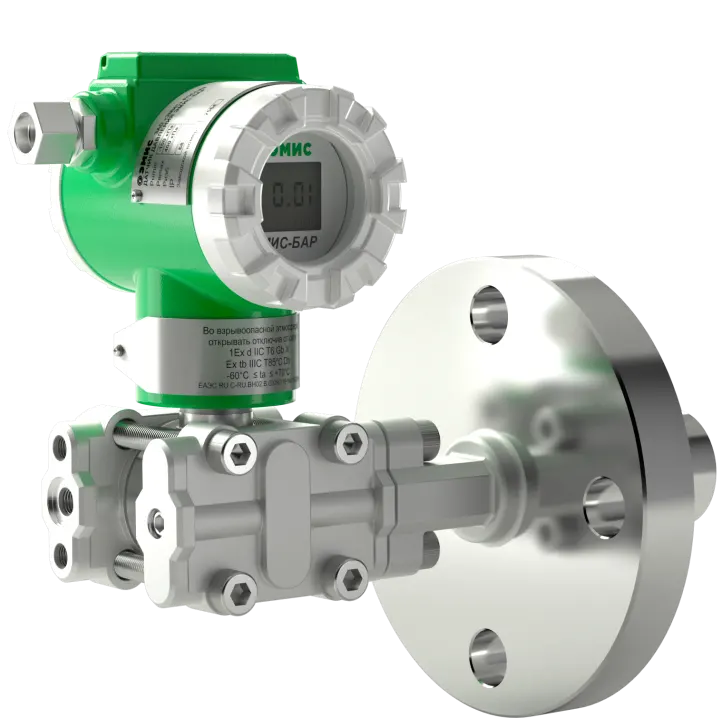

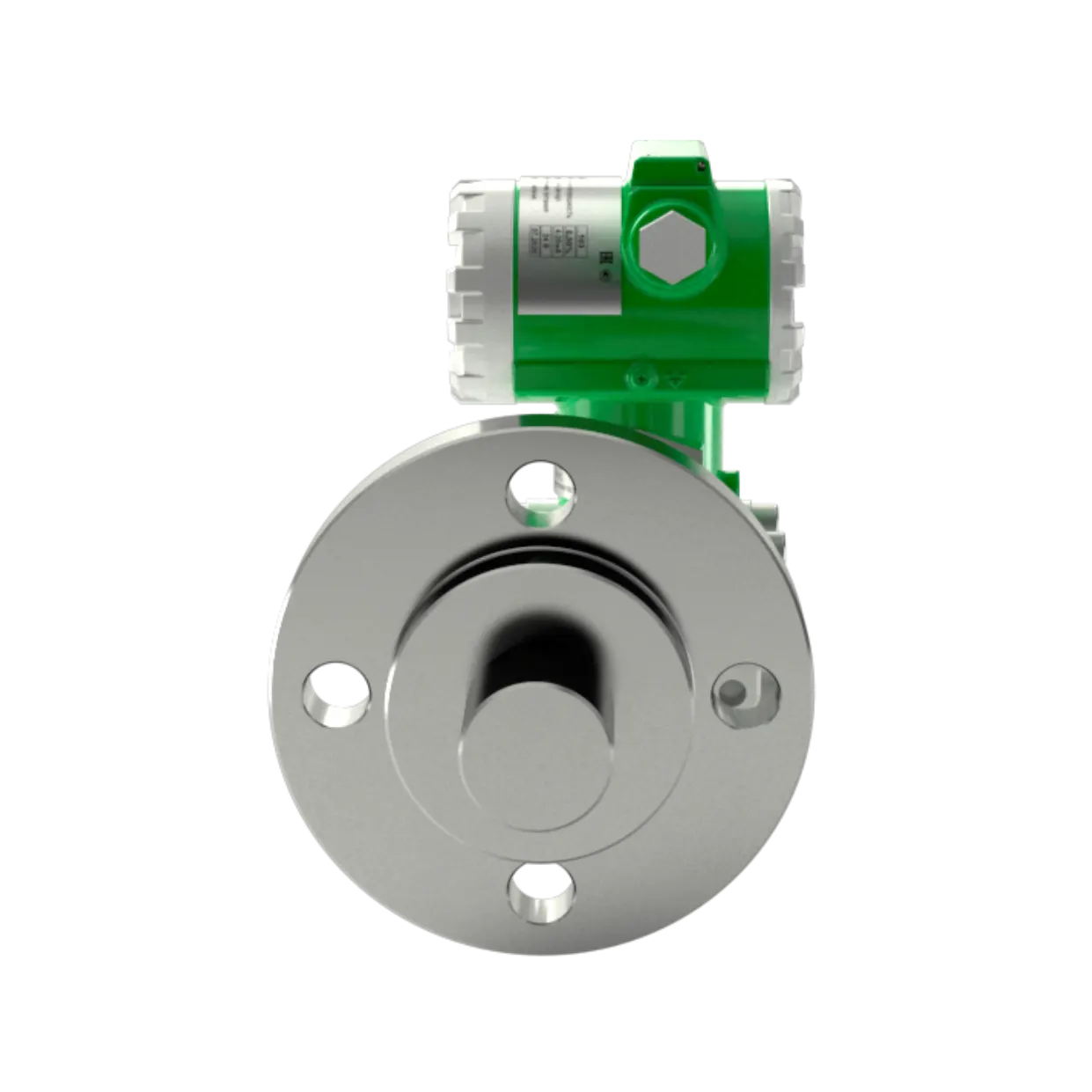

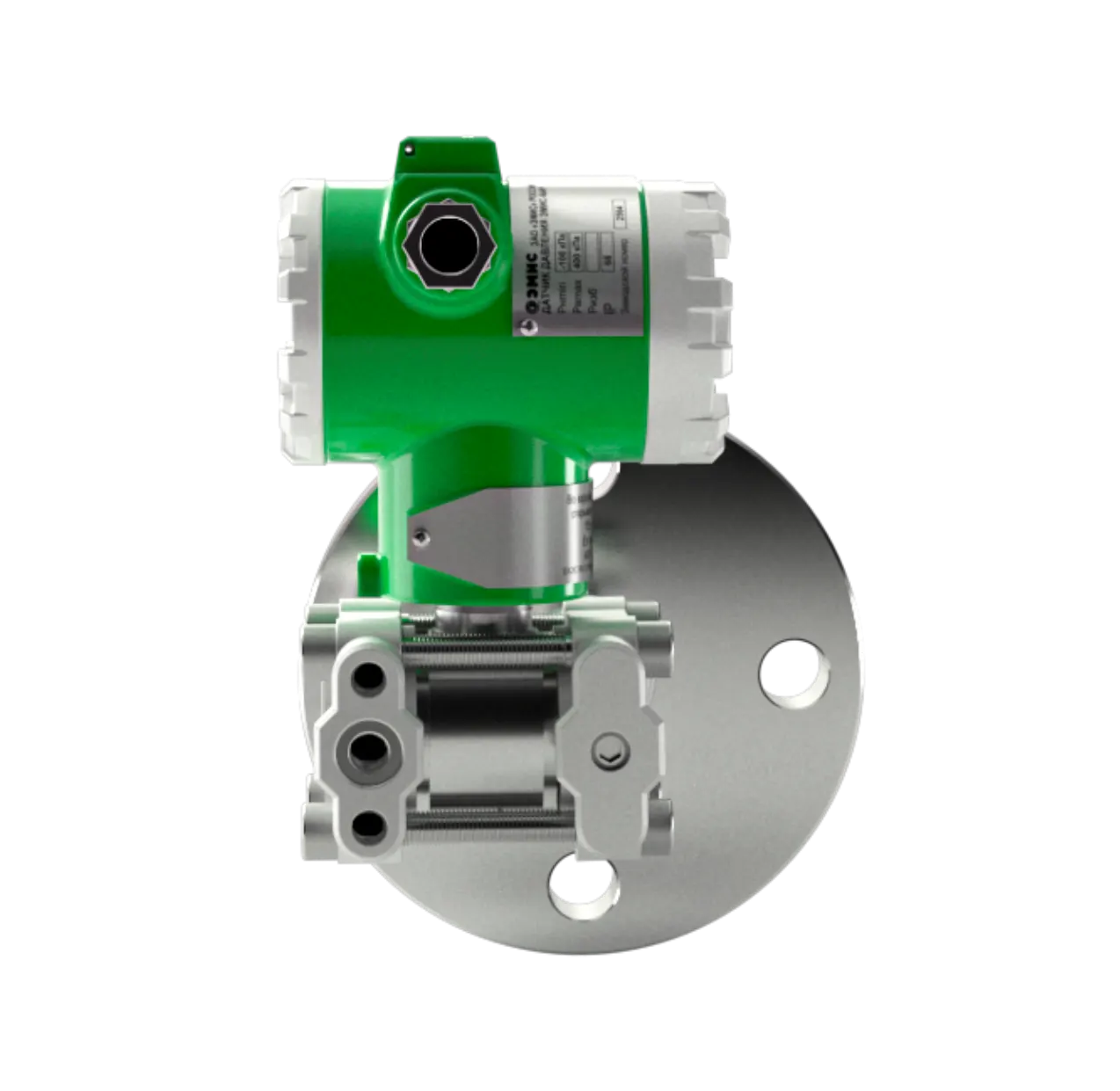

Designed for measuring absolute, gauge, differential and hydrostatic pressure. Determine the discharge of liquid and gaseous media, saturated and superheated steam. For pressure measurement under difficult technical conditions, the transmitters are manufactured with membrane phase separator (MPS). EMIS-BARs can be operated at remote hard-to-reach sites without power supply and transmit data via LoRaWAN network. The fully complete wireless stand-alone solution is the EMIS-BAR transmitter complete with EMIS-SISTEMA 800 transducer - transmitter. Due to the reduced measurement error of 0.04%, EMIS-BAR is used as part of commercial metering units and heat meters.
Specific features and advantages

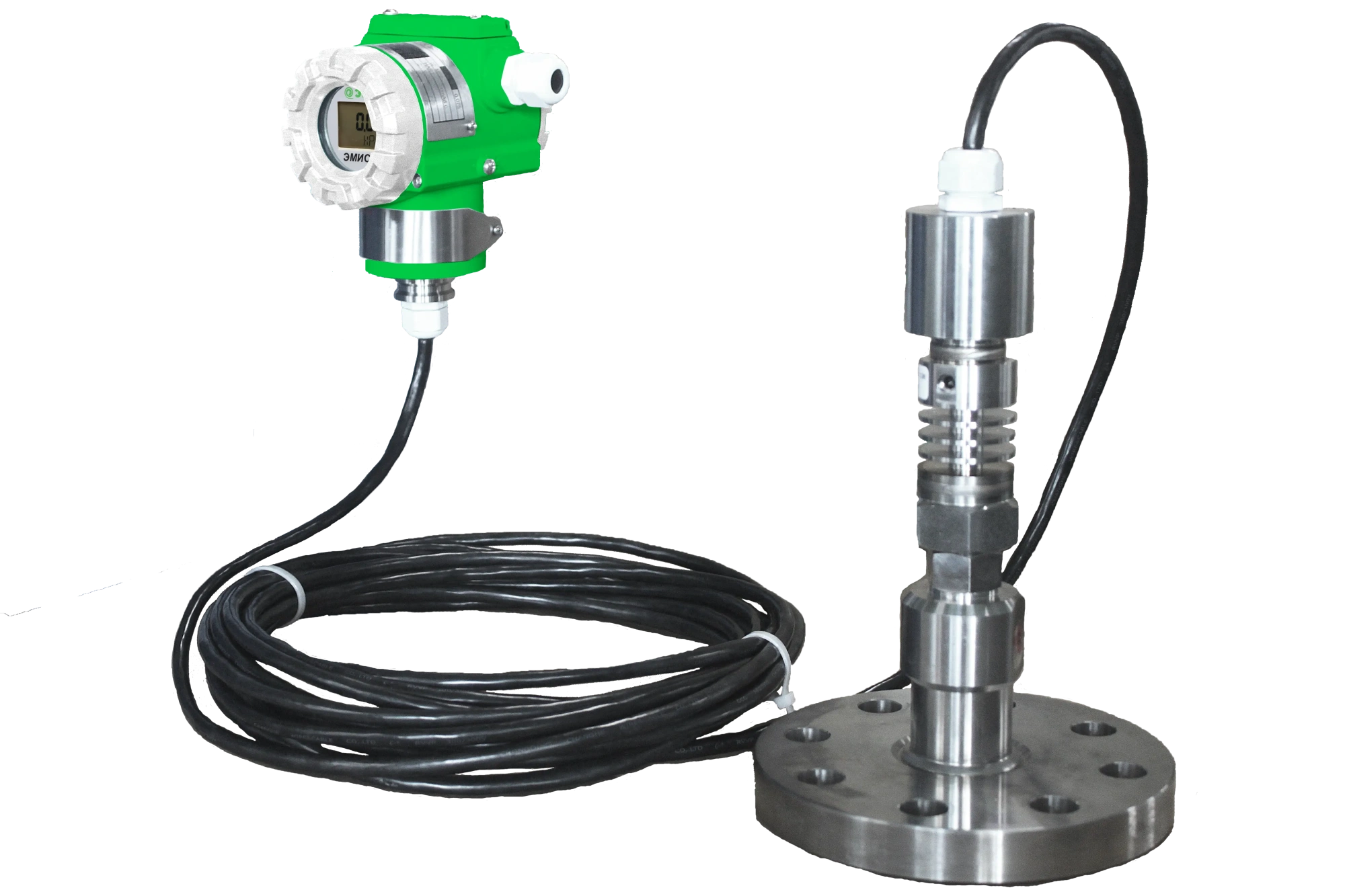

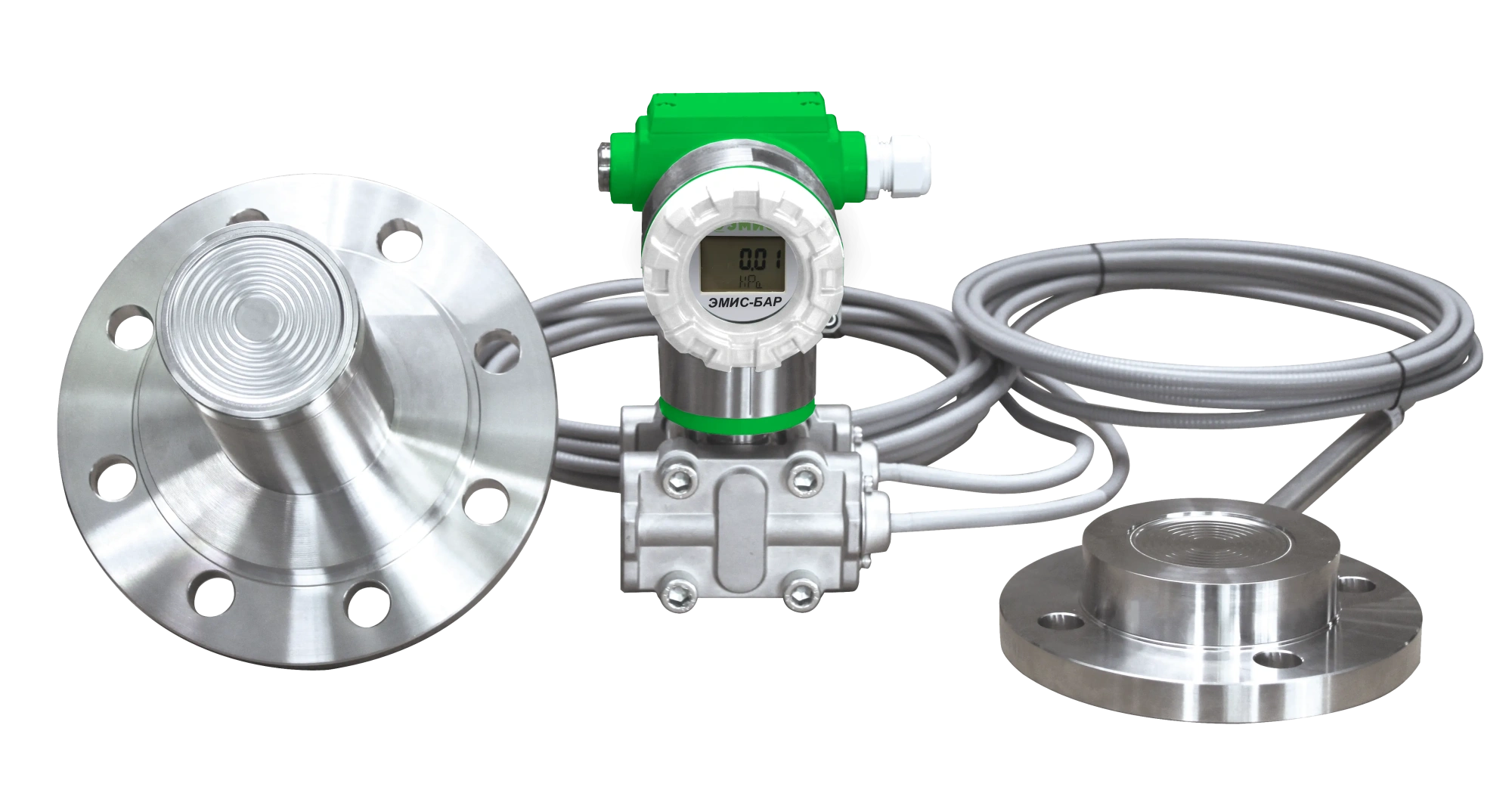

- Complete with diaphragm seal in various versions.
- Ability to operate via LoRaWAN wireless technology.
- Accuracy up to ±0.04% of the measuring range.
- Complete push-button setting directly in the hazar- dous area.
- Combined explosion protection 1Ex d ia IIC T6...T4 Gb X.
- Mining explosion protection PB Ex d ia I Mb X. Long- term stability is one of the best in the industry: no more than 0.1% of the measuring range over 10 years (0.01% of the range for 1 year).
- Sensor and electronics temperature measurement.
- Average MTBF is 220,000 hours.
- LCD display operability is -42...+85°C. Double-chamber housing of the electronic unit. lifespan: 30 years old.
- High overload capacity: up to 105 MPa. Average
- Certificate of VCS "Intergazsert".
- Seismic resistance is 9 points according to MSK64
- GOST 30546.1.
- Certificates: TR CU 032, TR CU 012, TR CU 020.
- Vibration resistance V2 and G2 according to GOST R 52931-2008.
- Certificate of Type Approval from the RMRS.
- Certificate for use in environments containing hydrogen sulfide GOST R 53679-2009, GOST R 53678-2009.
- Certificate for use in contact with chlorine GEST 79/82.
- SIL2 certification with ability to calculate the safety integrity level.
- Measuring diaphragm materials are 316L steel, 316L gold-flashed, tantalum, C-276 alloy, monel.
