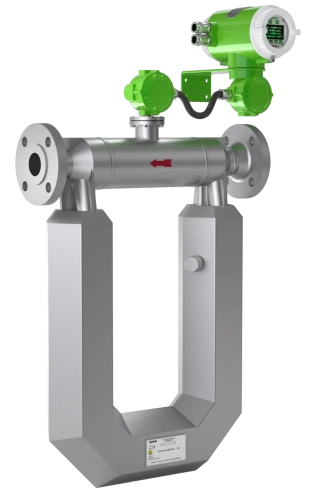

EMIS-MASS 260 U-Type Integral Coriolis Mass Flowmeter
Direct measurement of mass, volume, flow rate density.
The U-Type Integral EMIS-MASS 260 is a standard enclosure type, offering a modern and cost-effective measurement solution. It is ideal for installations where sufficient space is available. The simple design reduces manufacturing costs, making it more affordable than other flowmeter types.
The EMIS-MASS 260 Coriolis Mass Flowmeter is designed for precise flow measurement across a wide range of industries, including chemical, food, pharmaceutical, utilities, and oil & gas.
Applications
The EMIS-MASS 260 is ideal for measuring the mass flow of gases, air, and liquids, including:
- Petroleum, diesel fuel, kerosene, and liquefied gas
- Oil, fuel oil, acids, and alkalis
- Aggressive mediums, mixtures, and highly viscous liquids
- Food-grade products and two-phase liquids (e.g., net oil computation)
Key Features & Advantages
- Multi-Parameter Measurement: Simultaneously measures mass flow, density, and temperature of the medium.
- Food-Grade Compatibility: Available in a food-grade version for applications in the food industry.
- Remote Communication: Supports RS-485 Modbus RTU for remote data communication, configuration, and testing.
- Bidirectional Flow Measurement: Capable of measuring both direct and reverse flows.
- No Straight Pipe Requirements: Operates without the need for straight meter runs or additional equipment.
- Handles Complex Mediums: Measures highly viscous liquids and fluids with solid or gas inclusions up to 2%.
- Durable Construction: Stainless steel flow tube ensures compatibility with corrosive and food-grade mediums.
- User-Friendly Interface: Features optical buttons, a display, and a bilingual (Russian-English) menu for ease of operation.
- Cost Efficiency: Short payback period due to its reliability and performance.
Product Variants
Food-Grade Type
Certified for use in the food industry, the food-grade version meets stringent hygiene and safety standards. For references, see applications at:
Remote Type
The remote version allows the transmitter to be installed separately from the transducer, with a maximum cable length of 100 meters. This configuration supports medium temperatures up to 250°C, making it suitable for high-temperature applications.
Digital Electronics
- Pressure Compensation: Automatically corrects flow measurements based on pressure variations.
- Modbus Compatibility: Additional register card ensures seamless integration with leading flowmeter software.
- Customizable Settings: Adjustable damping time for flow rate and density measurements.
- Secure Operation: Protective switch unit prevents unauthorized access to metrological parameters.
- Precision Calibration: Calibration factor adjustments available at eight specific flow points.
How to Order
To place an order or request a detailed technical and commercial offer, please contact us at:
- Phone: +7 (351) 729-99-13
- Questionnaire: Fill out a form with a description of your process, and our specialists will assist you.
|
Measured medium
|
Liquid, Gas |
|
Nominal bore diameter, mm
|
10; 15; 25; 40; 50; 80; 100; 150; 200; 250 |
|
Flow type
|
Mass, Volume |
|
Process pressure, MPa
|
up to 25 |
|
Proccess temperature, °C
|
-196...+200 |
|
Ambient temperature, °С
|
-60...+70 |
|
Accuracy, %
|
Liquid ±0,1; ±0,15; ±0,2; ±0,25; ±0,5%; Gas ±0,35; ±0,4; ±0,45; ±0,5; ±0,75%; Temperature ±0,5; ±1 °C; Density ±0,5; ±1,0 kg/m³ |
|
Output signals
|
Pulse (passive/active) - NAMUR NA 01; Analog 4-20mA (passive/active) - NAMUR NE 43; Digital ModBus RTU with RS-485; Digital Ethernet with ModBus TCP/IP; Current 4-20mA with digital HART (passive) without additional error. |
|
Explosion protection type
|
Exi, Exd, mine config. |
|
Ingress protection
|
IP66/IP67 |
