Guided wave radar EMIS-PULSE 540

Order

Characteristics

Measured medium

—

Liquid, Steam, Gas

Process pressure, MPa

—

4 (Special up to 40)

Proccess temperature, °C

—

From -60 up to +450

Ambient temperature, °С

—

from -60...+85 (-70 to +85 with thermal cover)

Accuracy, mm

—

±1; ±2; ±3; ±3,5; ±5

All characteristics

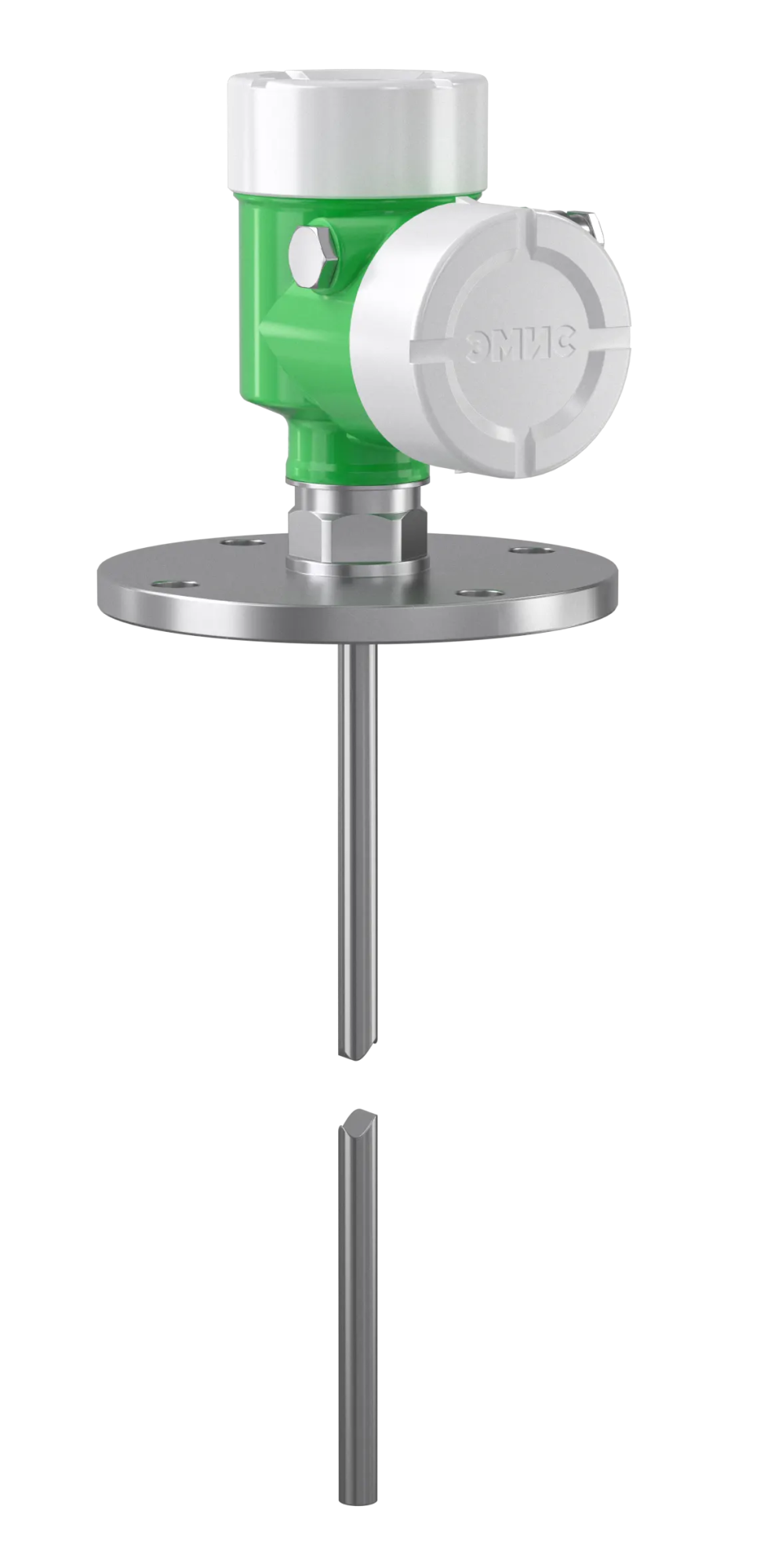

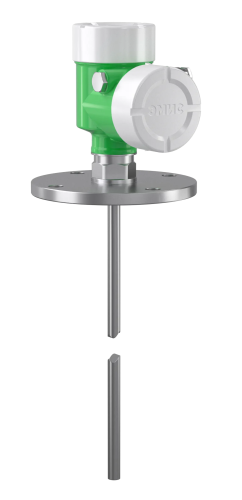

EMIS-PULSE 540 Guided wave radar level transmitter

Waveguide level gauges are designed to measure and control the level and interface of liquid and loose media.

The operation principle of the guided wave radar level meter is based on TDR (Time Domain Reflectometry) technology.

Oil and water storage tanks including tanks with high nozzles or with internal structural elements;
Storage tanks containing bulk solids and highly viscous media; Desalters, dehydrators;
Remote chambers including those with a narrow measuring range of the medium level;
Oil/water separators, measurement at low dielectric constant and turbulence at the surface of the medium;
Replacement of displacer-type level indicators in existing chambers.

Specifications

Measured medium	Liquid, Steam, Gas
Process pressure, MPa	4 (Special up to 40)
Proccess temperature, °C	From -60 up to +450
Ambient temperature, °С	from -60...+85 (-70 to +85 with thermal cover)
Accuracy, mm	±1; ±2; ±3; ±3,5; ±5
Output signals	Analog 4-20 mA / digital HART v7
Explosion protection type	0Ex ia IIC T6…T1 Ga X; Ex ia IIIC T80°C…T450°C; 0Ex ia IIB T6…T1 Ga X; Ex ia IIIB T80°C…T450°C; 1Ex db IIC T6…T1 Gb X; Ex tb IIIC T80°C...T450°C; 1Ex db ia IIC T6...T1 Gb X.
Ingress protection	IP66/IP67, IP66/IP68
Supply voltage, V	24 V DC, 220 V AC
Proccess connection	Flange connection from DN25, GOST, EN, ASME flanges. Threaded connection 1.5" and 3/4", G, NPT threads.
