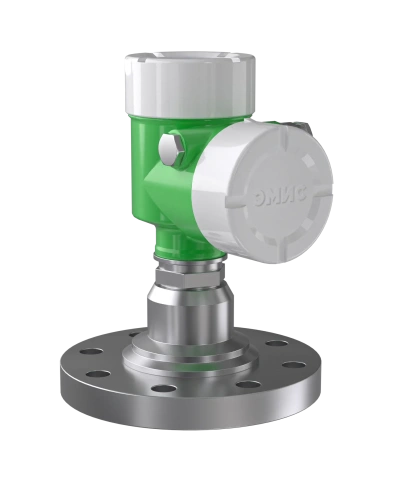

Non-contacting radar EMIS-PULSE 530
We recommend
Characteristics
Measured medium
—
Liquid, Steam, Gas
Process pressure, MPa
—
4
Proccess temperature, °C
—
from -60 to +450; from -196 to +445 special
Ambient temperature, °С
—
from -60...+85 (-70 to +85 with thermal cover)
Accuracy, mm
—
±1, ±2, ±3, ±5

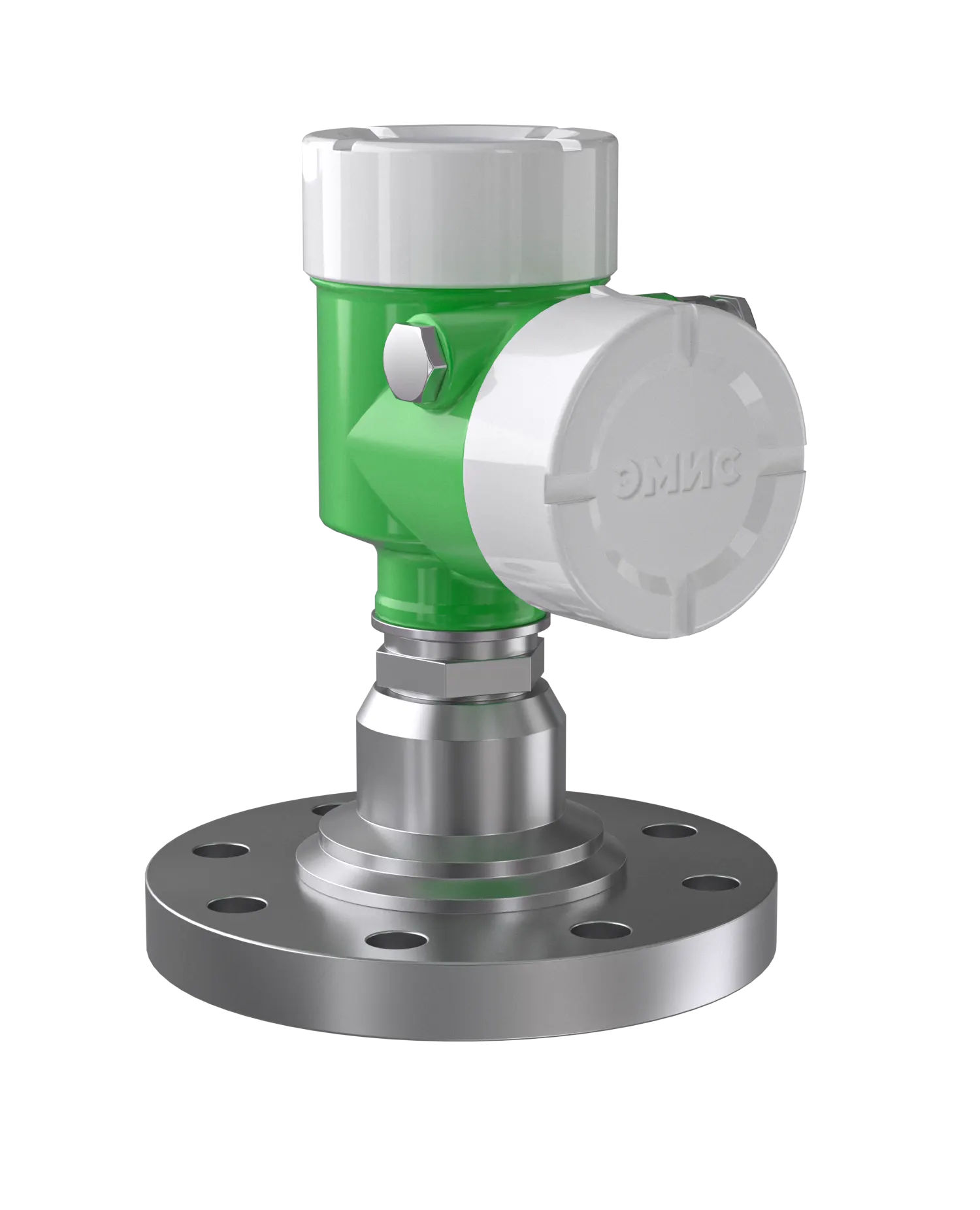

Non-contacting radar EMIS-PULSE 530
EMIS-PULSE 530 Radar level transmitters
Designed for measuring the level of liquids (including liquefied gases) and bulk materials at atmospheric pressure and overpressure.
The operating principle of level meters is based on by the level meter antenna emission of continuous f requency modulated signal which reflecting from the surface of the medium is received by the level meter antenna with a time delay. Using the frequency difference between the emitted and received signals, the level value of the medium is calculated.
Key Benefits & Advantages
- Storage tanks and buffer tanks containing liquid (oil, gas condensate, water, chemicals, etc.);
- Reactors including those with complex process conditions: strong turbulence, foaming, condensation, high temperatures and pressures;
- LPG stilling pipes, with boiling surface and rapidly changing level;
- Mixers and agitators, working under conditions of vibration and changing fluid properties; .
- Open tanks range from small sumps to large dams;
- Bulk and solid material storage, measuring at abrupt level changes.
Specifications
|
Measured medium
|
Liquid, Steam, Gas |
|
Process pressure, MPa
|
4 |
|
Proccess temperature, °C
|
from -60 to +450; from -196 to +445 special |
|
Ambient temperature, °С
|
from -60...+85 (-70 to +85 with thermal cover) |
|
Accuracy, mm
|
±1, ±2, ±3, ±5 |
|
Output signals
|
Analog 4-20 mA / digital HART v7 |
|
Explosion protection type
|
0Ex ia IIC T6...T1 Ga X; Ex ia IIIC T80°C...T450°C; 0Ex ia IIB T6...T1 Ga X; Ex ia IIIB T80°C...T450°C; 1Ex db IIC T6...T1 Gb X; Ex tb IIIC T80°C...T450°C; 1Ex db ia IIC T6...T1 Gb X. |
|
Ingress protection
|
IP66/IP67, IP66/IP68 |
|
Supply voltage, V
|
24 V DC, 220 V AC |
|
Proccess connection
|
Flanged connection from DN50, GOST flanges, EN, ASME, Threaded connection 1.5" and 3", G, NPT threads. |
